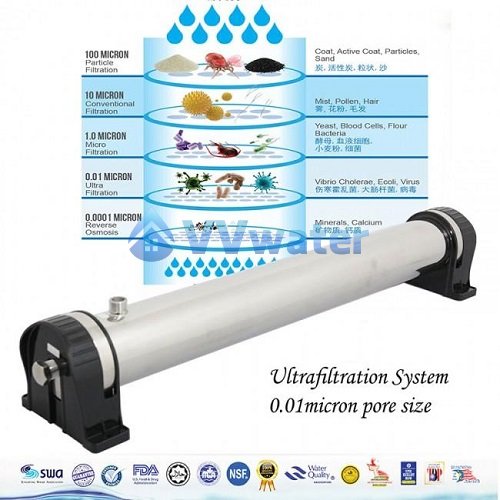

T2500 UF Ultra Filtration Membrane Water System

RM 1,880.00
RM 1,399.00

Recommendations to Landed Houses, Office, Condominium, Apartment, Restaurant, Laboratory. Whole House Water Backwash System, Galcon 9001 Automatic Water Timer Controller is provided
Ship In : 3-5 working days


Free Delivery
Free Installation (Klang Valley)

Questions? We can help

  • +6016 343 1031
  • Or Whatsapp us
  • MON–FRI: 8AM–6PM UTC+08:00
  • SAT: 9AM–5PM UTC+08:00


Total Amount: RM
Quantity:


The UF membrane is based on Polysulfone (PS) material with one of the highest membrane packing densities per cartridge available in the market. Polusulfone membranes exhibit a wide pH tolerance (continuous exposure range of pH 1- 13), high temperature limit (typically 75 °C), good oxidant resistance (chlorine exposure: storage 50 mg/L, short-term sanitation 200 mg/L, >106 ppmh).


The Ultrafiltration System Design
The Hollow fibre is a flexible membrane; it can carry out the filtration by either "inside-out" or "outside-in". cross flow hollow fibre membrane also reduces fouling as the fluid flows from the inside of the hollow fibre and pass through to the outside of the membrane. Despite the size of the hollow fibre membrane being smaller than other types of membrane, its circular structure allows a higher surface area which in turn, yields a higher performance.

Ensure water at your house is in its purest form with Holofibre UF membrane point of entry filtration system. Uses a super clean water with purity of up to 99.99% for the whole house.


Ultrafiltration (UF) membrane is a separation technique used to segregate, concentrate and purify substances according to molecular weight & size, it is a pressure driven unit operation in which particulates bacteria and living organism are retained, provides superior filtration process, leaving pure water molecules pass through the hollow fiber membrane.

This UF membrane based technology able to removes up to 99.9% impurities so to meet various demand of quality water supply.


Use the Galcon timer for self cleaning. It enables automatic cleaning feature flushes out the trapped sediments & impurities with minimum operator intervention, ensure that the filtered water in its purest form.

This self cleaning process is necessary to prevent clogging of filter membranes & thus prolong the life-span of the hollow fiber membrane.



Why Polysulfone?

It is one of the highest membrane packing densities per cartridge available in the market.
Exhibit a wide pH tolerance (continuous exposure range of pH 1- 13)
Withstand in high temperature limit (typically 75 °C)
Good oxidant resistance (chlorine exposure: storage 50 mg/L, short-term sanitation 200 mg/L, >106 ppmh).




Design

It can carry out the filtration by either "inside-out" or "outside-in".
Cross flow hollow fibre membrane also reduces fouling as the fluid flows from the inside of the hollow fibre and pass through to the outside of the membrane.
Despite the size of the hollow fibre membrane being smaller than other types of membrane, its circular structure allows a higher surface area which in turn, yields a higher performance.



ADVANTAGES

  • Holofibre Membrane can effectively filter or remove rust, oil, bacteria and harmful chemicals larger than 0.01 micron.
  • Improves taste and eliminates odour
  • Removes hundreds of contaminants (suspended solids)
  • Removes bacteria and viruses
  • Remains the micro elements and minerals
  • Sealed construction type of housing using food grade stainless steel can withstand high water pressure & direct sunlight without cracking.
  • Slim size, design for wall mounted (vertical / horizontal) can fit easily at any corner.
  • Flow Rate : High
  • Compact & Low maintenance cost


SPECIFICATIONS

Dimension (inch)

4.5 x 36

Membrane material

Polysulfone

Body Casing

SUS 304 stainless steel, plastic bracket

Membrane pore size

0.01 Micron

Wall mounted filter

vertical / horizontal




Galcon Auto Timer (Hose & Irrigation Controller)

Inlet/Outlet Size

20mm (c/w 25mm adaptor)

Battery Type

9V ( not included )

Weather Resistant

Yes

Watering Duration

1 minute - 12 hours, up to 3 times per day

No. of Start Times

1 - 4

Controller body Matterial

ABS

Seals

EPDM

Standard

CE

Maximum flow

1200 Liter/Hour / 5. 5 GPM

Working pressure

1-8 bar / / 15-115 PSI


Warranty

5 years (Body) / 1 Years (Control Valve)

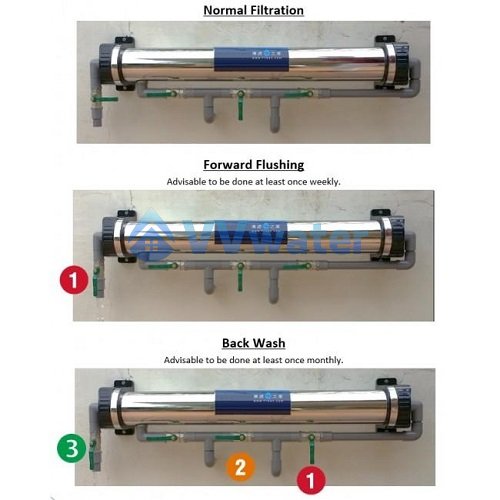

MAINTENANCE

Automatic with Galcon timer

Manual Backwash: frequent backwash and rinse / flush will ensure the water quality is maintained



Available Date : 3/12/2016
