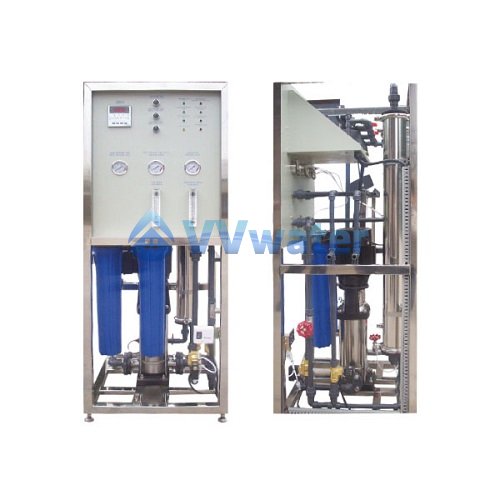

Reverse Osmosis System


Features
  • Production: 1500 Gallons Per Day ( 5,700 Liter Per Day)
  • 2½” x 20” Sediment Pre-Filter 20 Micron
  • 2½” x 20” Carbon Block Pre-Filter 5 Micron
  • High-Pressure Jet Booster Pump with Safeguards
  • Complete Panel for Easy Controls
  • Inlet Solenoid Valve with Bypass
  • Stainless steel liquid-filled pressure gauges
  • Low pressure cut off switch
  • Powder-coated, Welded Aluminum frame
  • Permeate and concentrate flow meters
  • 4” x 40” Stainless Steel Pressure Vessels
  • TFC 4” x 40” Membrane Elements.
  • Stainless Steel System Pressure Control
  • On/Off Main Power Switch
  • Dimensions: 18” wide x 18” deep x 44" Height.
  • Frame: Stainless steel
  • Weight: 80kg

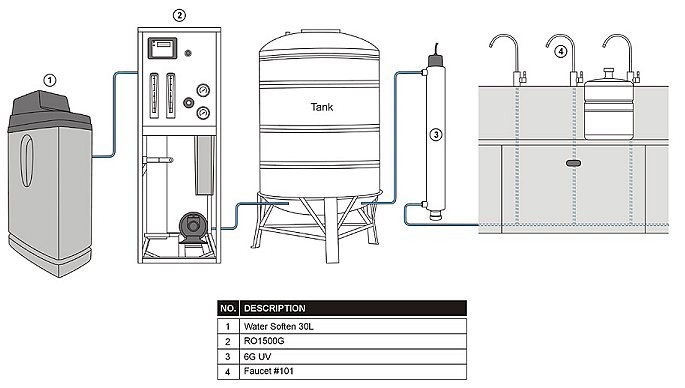

Bottle Water Plant for Water Store (1500G)
