Model

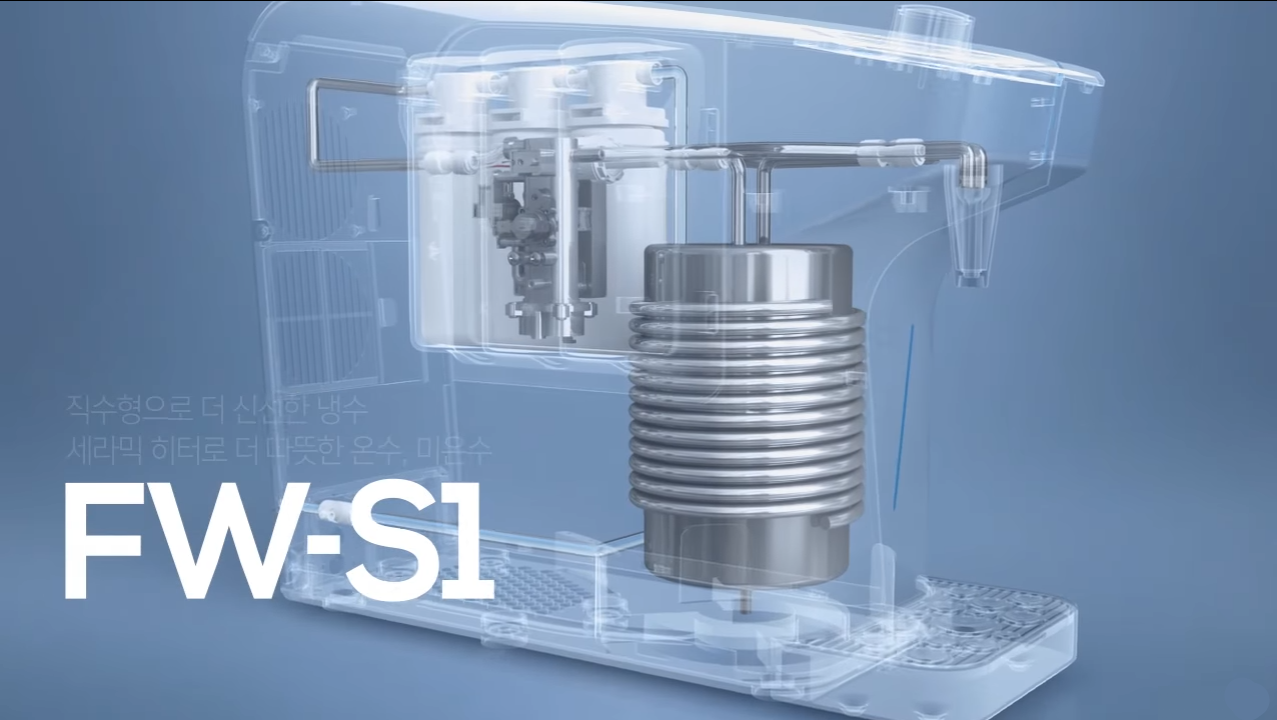

FW-S1

Feature

Cold & Hot(Low/high) & purified water (4 type) dispenser

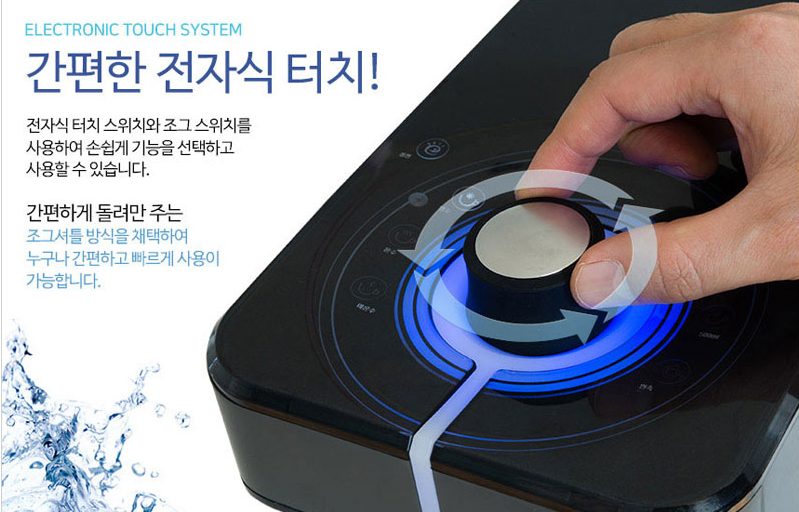

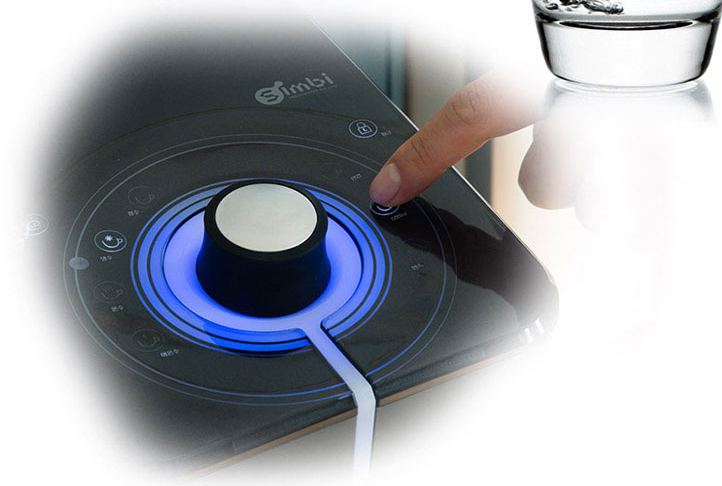

Front Display PCB

Superior Design for home

Slim design

Environmental Friendly refrigerant R-134

Preventing Overcooling by T/C

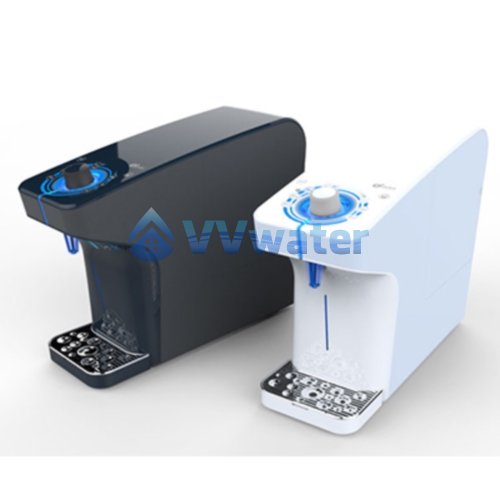

Color

Black & White

Function Optional

Cold & Hot(Low/high) & purified water (4 type)

Filtration

Ultra Filtration technical

filtration Stage

1 stage

Sediment + Block carbon filter (E.C FILTER)

2 stage

Block Carbon Membrane (E.C FILTER)

3 stage

nano plus( E.C FILTER)

Cooling Capacity

4°C ~ 10°C

Heating Capacity

Low hot water 50°C ±3°C/High hot water 85°C ±3°C

Power Consumption

Hot

2400 W

Cold

80 W

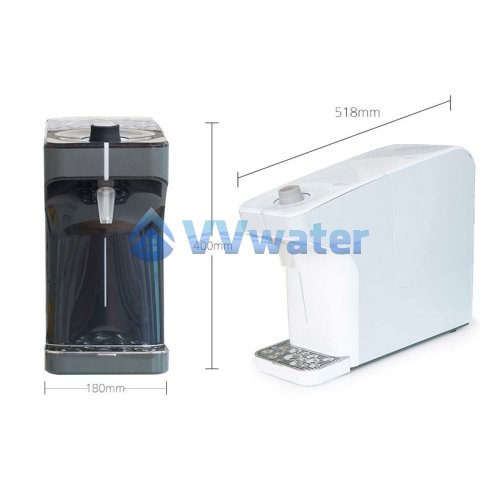

Dimension(WxDxH) -Before Packing

180(W) x 520(D) x 410(H)

Dimension(WxDxH) -After Packing

260(W) x 590(D) x 450(H)

Weight(kg)

Net

12 kg

Gross

13.4 kg

Stuffing Q’ty

20ft

320

40ft

640
